WALK THROUGH METAL DETECTOR UB500 6 ZONES
-
The UB500 walk-through metal detector offers accurate and fast metal detection with 6 zones. Perfect for high-traffic areas like schools, offices, hotels, shopping malls, banks, and events. Available across Pakistan (Islamabad, Rawalpindi, Lahore, Karachi, and more) at the best prices, including nationwide delivery and professional installation.
â—† Detection mode: Bilateral Transmission Bilateral reception
â—† Sensitivity: Each zone 0-99, 100 levels adjustable
â—† Frequency : 5.9K-8.6KHz continuously adjustable
â—† Visual Displays: Pass count & Alarm count (5 Digit LED Display)
◆ Weatherproofing : IP65, Temp: -20°C to +45°C
â—† Infrared passing speed: 60/min
â—† Easy install
â—† Safe for the human body
â—† Support multi-language
â—† Warranty: 24 months (limited)
â—† Technical support
â—† optional function: wheels, CCTV system
Walk-Through Metal Detector UB500 – 6 Zones (Uniqscan)
Advanced 6-Zone Security Gate for Precise Threat Detection The Uniqscan UB500 Walk-Through Metal Detector with 6 mutual overlapping detection zones delivers reliable and accurate security screening for high-traffic environments. This professional archway gate precisely locates metallic objects with simultaneous multi-zone alarms, ensuring minimal disruption and maximum safety. Ideal for corporate offices, shopping malls, schools, hotels, banks, airports, events, and public venues in Islamabad, Rawalpindi, and across Pakistan.
Now available with best prices in Pakistan, nationwide delivery, and expert installation services – from Karachi to Lahore, Peshawar to Quetta.
Key Highlights
- Six Overlapping Detection Zones: Simultaneous alarms from multiple zones for quick and precise metal location.
- 100-Level Sensitivity Adjustment: Customizable per zone to reduce false alarms in varying environments.

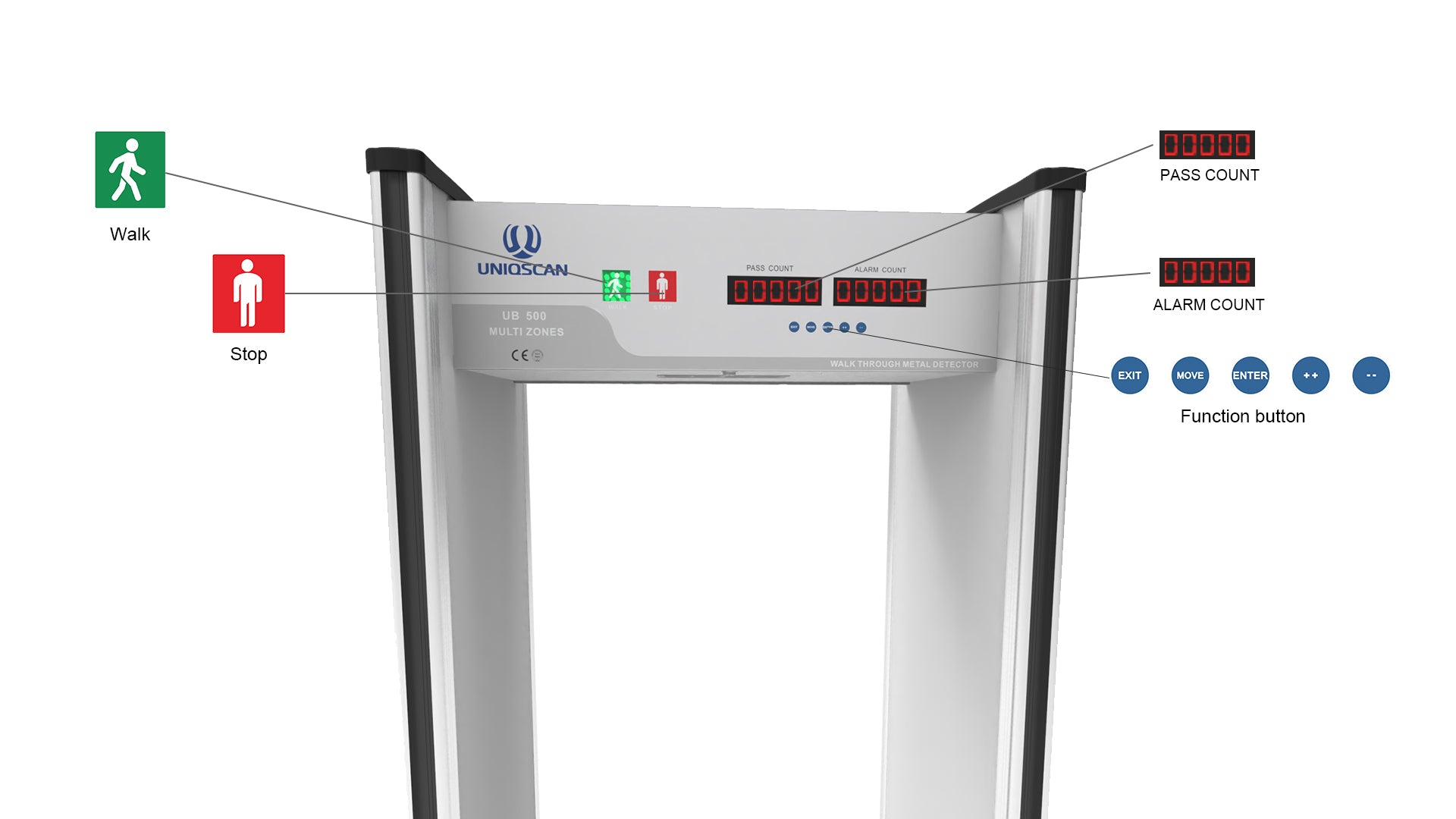

- Dual-Side LED Indicators: Clearly displays the exact position of detected metal for rapid response.
- Automatic Counters: Tracks passengers and alarms for better security management and reporting.
- Harmless & Safe: Certified safe for heart pacemakers, pregnant women, and magnetic media.
Outstanding Features

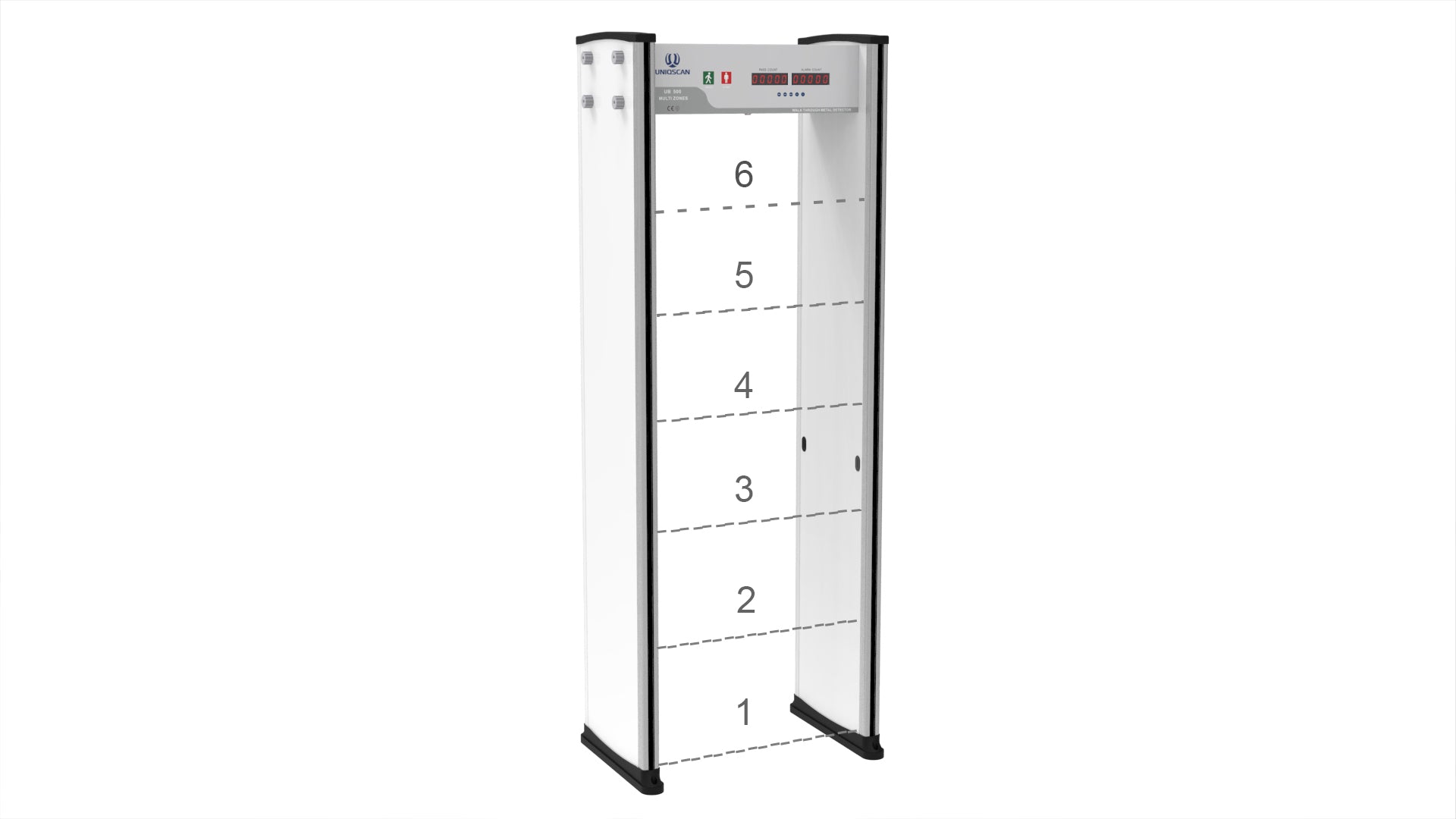

- Precise Multi-Zone Detection Six mutual overlapping zones detect and pinpoint metals from head to toe with high accuracy.
- Fully Adjustable Sensitivity Each zone has 100 sensitivity levels for optimal performance in any setting.
- Audio & Visual Alerts Adjustable sound alarms and bilateral LED lights, plus alarm strength indicator.
- Smart Traffic Monitoring Automatically counts passengers and alarms – perfect for analytics.
- Password-Protected Controls Ensures only authorized personnel can adjust settings.
- Easy & Quick Assembly Simple setup with minimal cables and screws, plus clear instructions.
- Self-Diagnostic System Automatic power-on checks; modular design for easy maintenance.
- Durable Fireproof Construction High-density fireproof material for long-lasting reliability.
- High Detection Capability Omnidirectional detection of small items like a one-yuan coin.
- Optional Backup Battery 4-8 hours of operation during power failures.
Technical Specifications
| Parameter | Specification | Benefit |
|---|---|---|
| Power Supply | AC 85V-264V / 100V-240V | Wide voltage compatibility |
| Working Temperature | -20°C to +50°C | Ideal for indoor and varied climates |
| Working Frequency | 4KHz–8KHz (adjustable) | Reduces interference |

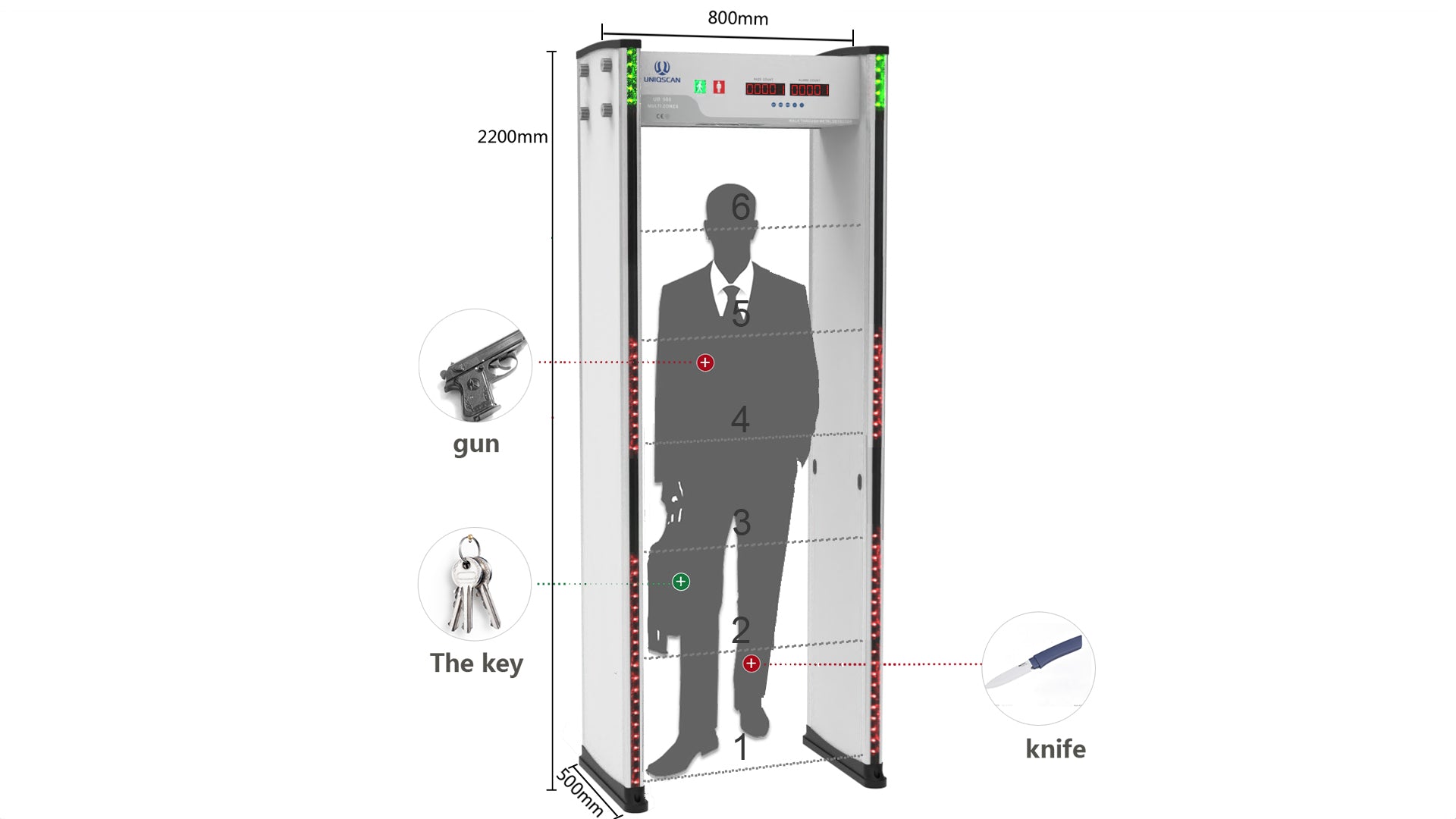

| Standard External Size | 2200mm (H) × 800mm (W) × 580mm (D) | Standard professional archway design |
| Standard Internal Size | 2010mm (H) × 700mm (W) × 500mm (D) | Comfortable for all users |
| Package Size (Door Panels) | 2260 × 650 × 260mm (1 carton) | Convenient shipping |
| Package Size (Control Unit) | 780 × 390 × 250mm (1 carton) | Compact and easy handling |
| Gross Weight | 70kg | Robust yet transportable |
Why Choose Uniqscan UB500 6-Zone Metal Detector?
- Industry-leading precision with overlapping zones and high sensitivity.
- Fully compliant with international safety standards – harmless to humans.
- Professional installation, warranty, and support across Pakistan.
- Competitive pricing with proven global performance in high-security applications.
Secure your premises today with the Uniqscan UB500 – reliable, efficient, and cost-effective security solution for Pakistan.
