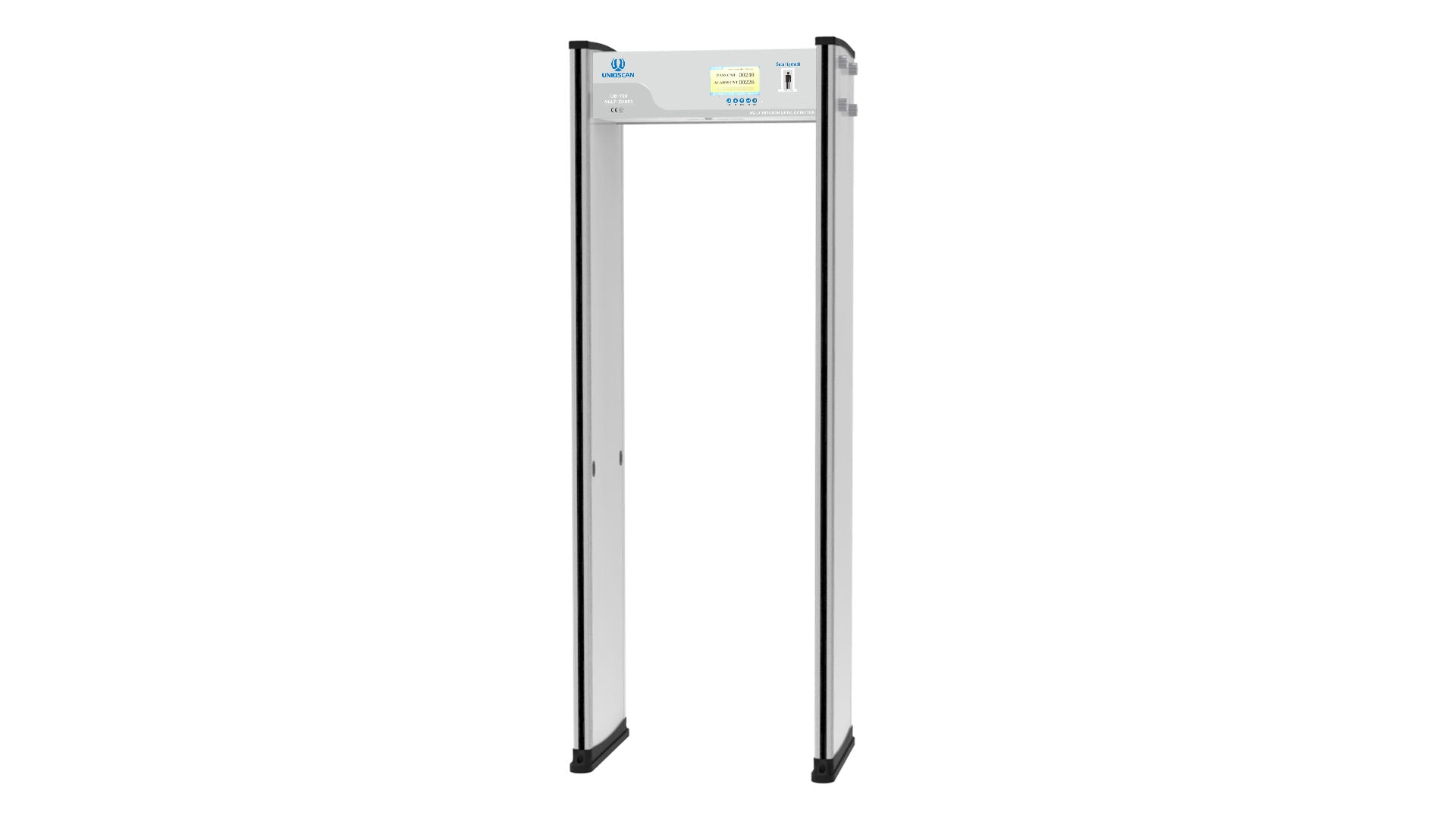

Walk Through Metal Detector UB700 33 Zones
The advanced UB700 walk-through metal detector features 33 zones for pinpoint metal detection using electromagnetic induction. With ultra-high sensitivity (1000 levels), aluminum alloy build, pure copper coils, and compact packaging, it’s perfect for airports, malls, hotels, banks, and events across Pakistan.
Available at best prices with delivery and installation nationwide.
Main Features
- 33 zones for accurate localization
- 1000 sensitivity levels – detects one-yuan coin
- 7″ LCD screen + infrared sensors
- Safe (no radiation), IP54/IP65 protection
- Easy assembly, modular design
- Reduced packaging for lower shipping costs
Quick Specs
- Power: AC 100-240V
- Temperature: -20°C to +65°C
- Display: 7-inch LCD
- Sensitivity: 1000 levels
- Certifications: CE, ISO, FCC, RoHS
Top choice for high-security – Order UB700 today!
Walk-Through Metal Detector UB700 – 33 Zones (Uniqscan)
Cutting-Edge 33-Zone High-Precision Security Gate The Uniqscan UB700 (2025 upgraded model) is an advanced 33-zone walk-through metal detector utilizing electromagnetic induction technology for ultra-precise detection of magnetic metals with automatic alarms. Featuring a robust aluminum alloy casing, streamlined circuit board, and proprietary pure copper coils, this detector offers unmatched stability, durability, and space-efficient packaging – reducing shipping costs significantly for international buyers.
Ideal for high-security environments like airports, government buildings, courts, prisons, stadiums, shopping malls, hotels, banks, schools, and events in Islamabad, Rawalpindi, Lahore, Karachi, and across Pakistan. Available at best prices with nationwide delivery and professional installation.
Key Highlights

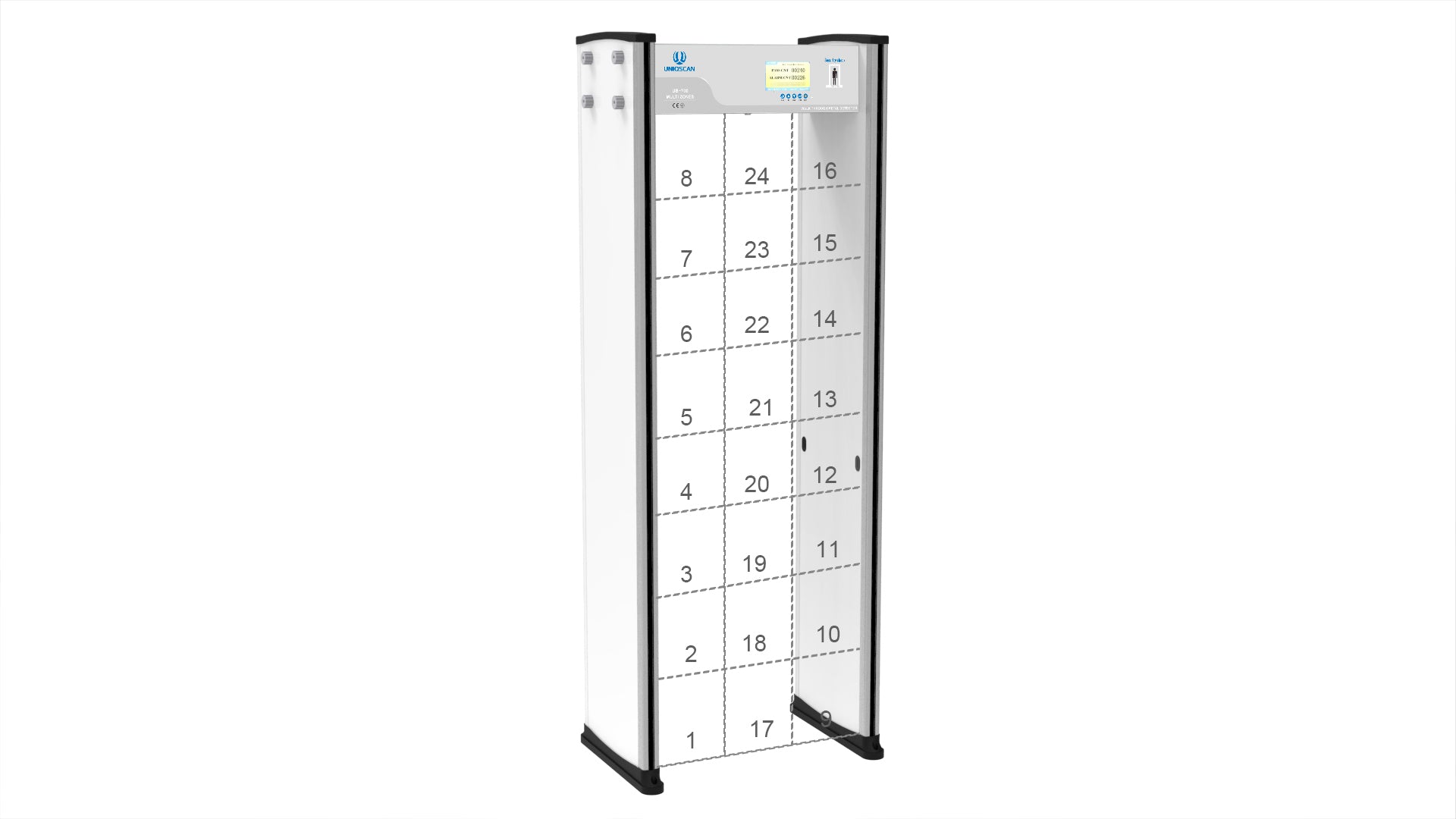

- 33 Independent Localization Zones: Pinpoint accuracy for threat identification across the body.
- Ultra-High Sensitivity (1000 Levels): Detects even small objects like a one-yuan coin (22.25mm) in any orientation.
- Intelligent Alarm System: High-quality infrared sensors for rapid, low false-positive alerts.
- Space-Efficient Design: Compact single-carton packaging reduces logistics costs by up to 87.5%.
- Safe & Eco-Friendly: No radiation – harmless for pregnant women, pacemaker users, and the environment.
Outstanding Features
- Precise Multi-Zone Detection 33 zones provide detailed localization of metallic threats (guns, knives, phones, keys, etc.).
- Modular & Easy Maintenance Design Simple assembly, repair, and upgrades minimize downtime.
- Advanced Aluminum Alloy Structure Anodized crossbeam (25% thicker) with reinforced ribs – 120% higher load capacity and superior corrosion resistance.
- Pure Copper Coils Enhanced conductivity and durability for reliable performance in harsh conditions.

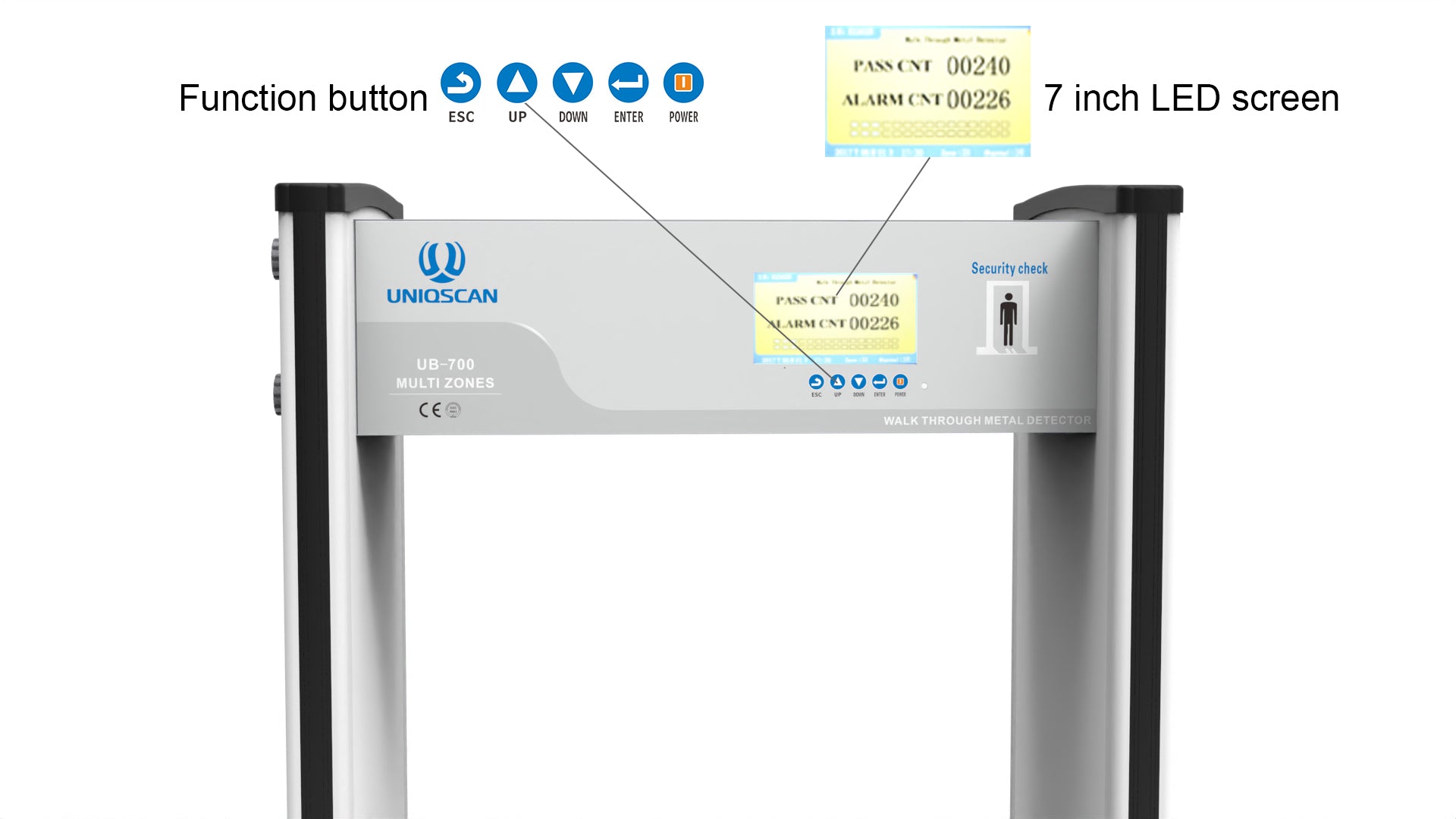

- 7-Inch LCD Control Panel Intuitive interface with tamper-proof digital password protection.
- Infrared Sensing Bidirectional sensors with Walk/Stop indicators; passing speed of 30-40 people/min.
- LED Circular Light Curtain High-brightness LEDs for uniform illumination and intelligent human-metal distinction.
- Industrial Aesthetic Co-designed by international teams – 40% improved stability and 35% enhanced durability.
- Embedded Host Module Smart auto-sleep mode reduces standby power by 30%; 2025mm internal height for tall users.
Technical Specifications
| Parameter | Specification | Benefit |
|---|---|---|
| Detection Zones | 33 independent zones | Ultra-precise threat localization |
| Sensitivity Levels | 1000 adjustable levels | Detects tiny objects with minimal false alarms |
| Display | 7-inch LCD screen | Clear, user-friendly interface |
| Infrared Sensors | 2 pairs (bidirectional) | Fast and accurate people counting |
| Alarm Indicators | LED lights + adjustable sound | Immediate visual/audio alerts |
| Passing Speed | 30-40 people/min | High-traffic efficiency |
| Power Supply | AC 100-240V 50/60Hz; DC 12V/3A | Universal compatibility |
| Working Frequency | 7KHz–9KHz | Reduced interference |
| Operating Temperature | -20°C to +65°C | Indoor/outdoor versatility |
| Humidity | 0-95% (non-condensing) | Reliable in varied environments |
| Protection Level | IP54 (Silver Grey) / IP65 (Black) | Dust/water resistant |
| Material | High-density fiberboard + Aluminum alloy | Durable and corrosion-resistant |
| Colors | Silver Grey, Black | Modern aesthetic options |
Warranty & Certifications
- Warranty: 1 Year
- Certifications: CE, ISO9001, FCC, RoHS
Why Choose Uniqscan UB700 33-Zone Metal Detector?
- 2025 innovations for superior stability, reduced shipping volume, and lower costs.
- Perfect for maximum security needs with pinpoint accuracy and zero radiation.
- Professional support and installation across Pakistan.
Upgrade your security with the Uniqscan UB700 – precision engineering for ultimate protection.
